Rollon Slide Rings

Features

ROLLON SLIDE RINGS are used as piston & rod guides due to their outstanding friction behavior, stick slip free running and good resistance to high temperatures & chemicals.

Rollon Slide Rings are available in following standard thicknesses, viz 0.8, 1.2, 1.6, 2, 2.5, 3.2 & 4 mm and in varying widths.

Example: Thickness X Width X Length"

Advantages

  • Very good friction characteristics
  • No stick slip effects even at very low speed
  • Prevents migrating of contaminates
  • High wear resistance
  • Damping of mechanical vibrations
  • Long service life
  • High load bearing capacity
  • Protection of the seals
  • Easy Installation
  • Low maintenance
  • TIGHT GEOMETRIC TOLERANCES improve groove fill for better deformation
  • control and load capacity
  • Available in running rolls and cut -to-length strip.

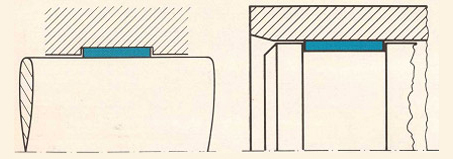

Rod Guide & Piston Guide

Rod Guide & Piston Guide

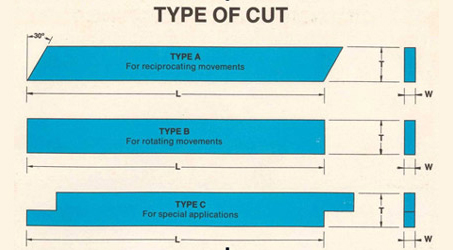

Type of cut
