Rollon Heavy Duty Linear Rail System

Rollon Bearings offers these standard rails for multiple sliding applications covering light, medium & heavy load industrial applications.

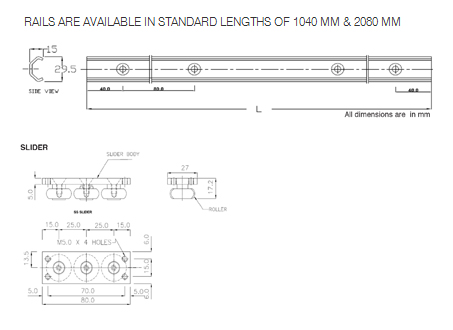

ROLLON BEARINGS STAINLESS STEEL LINEAR SLIDE RAIL

Stainless Steel Linear Slide Rails are simple functional & cost effective solution for linear motion with optimum load capacity and corrosion resistance. Rails are roll formed in Stainless Steel SS304, has no coatings that could flake or ship.

Slider body is made of Stainless steel SS304 for high corrosion resistance. Rollers are lubricated for life and sealed against contamination. Rollers have eccentric pivots that allow adjusting the preload when mounted inside the rail. Rollers made with thread integrated inner ring for ease of assembly & preloading.

AN ECONOMICAL CHOICE FOR YOUR LINEAR GUIDE APPLICATIONS.
LOW COST SOLUTION FOR SLIDING DOORS, PACKAGING, GUIDES FOR ANY LINEAR MOVEMENTS AND ANYWHERE CORROSION RESISTANT LINEAR MOTION IS REQUIRED

Click on the image to enlarge

ADVANTAGES

Low Co-efficient of Friction
Low Noise
Cost Effective
Corrosion Resistant
Simple & Easy Installations
Interchangeability

APPLICATIONS

Machine Tool Door enclosures
Industrial Washing machines
Automation
Assembly lines
Guide for wood working machinery

Type

^Corad KG

^C0ax KG

SS SLIDER

Technical data

Maximum Load capacity: 40kgs per Sliders
Maximum Speed: 1.5 M/S depending on working conditions.
Maximum Temperature: 100° C

ROLLON BEARINGS HEAVY DUTY RAIL FOR MEDIUM & HEAVY LOAD INDUSTRIAL APPLICATIONS

Heavy Duty Rail is a robust linear bearing system that is easy and inexpensive to mount on all surfaces even on un-machined surfaces. The system consists of slider with radial bearings which slide on the internal raceways of the carbon steel rail profile which is cold drawn zinc plated.

The system is recommended for high processing speeds, long service life & high load specifications and noiseless running. This system is easy to mount, align & use

A ROBUST SOLUTION FOR YOUR LINEAR GUIDE APPLICATIONS
AVAILABLE IN TWO SIZES RB 28 & RB 43

SALIENT FEATURES

Compact construction reduces space requirement.
Unique design places raceway inside of the rail which protects the system from shocks.
Self lubricating wipers protects the system from dust particles.
High production output due to high speed. 5 m/sec for RB 28 Rail & 7 m/sec for RB 43 Rail
Low operational noise level.
Ease of installation saves assembly time & cost.
Provision for pre-loading of sliders allows optimum stiffness.
Wipers provided for dust protection
